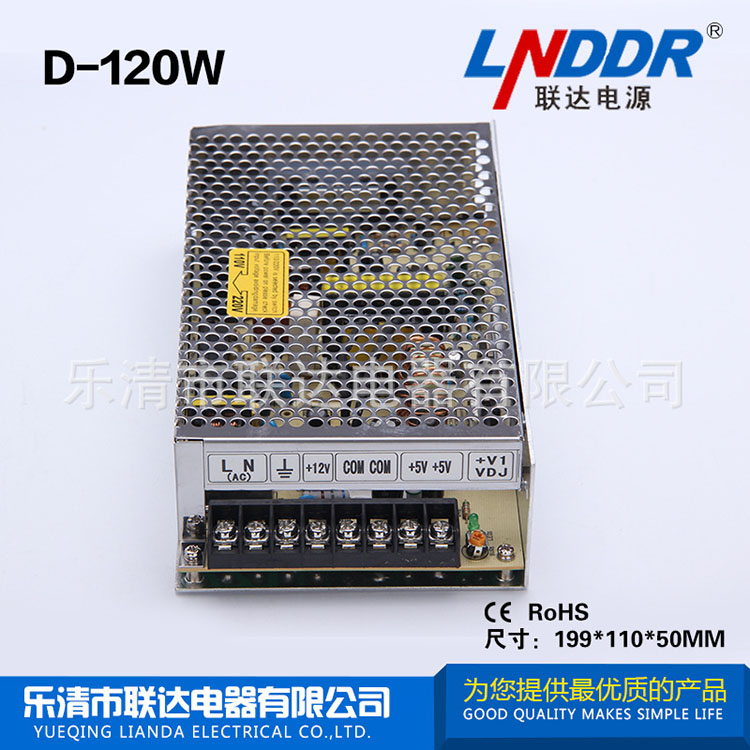

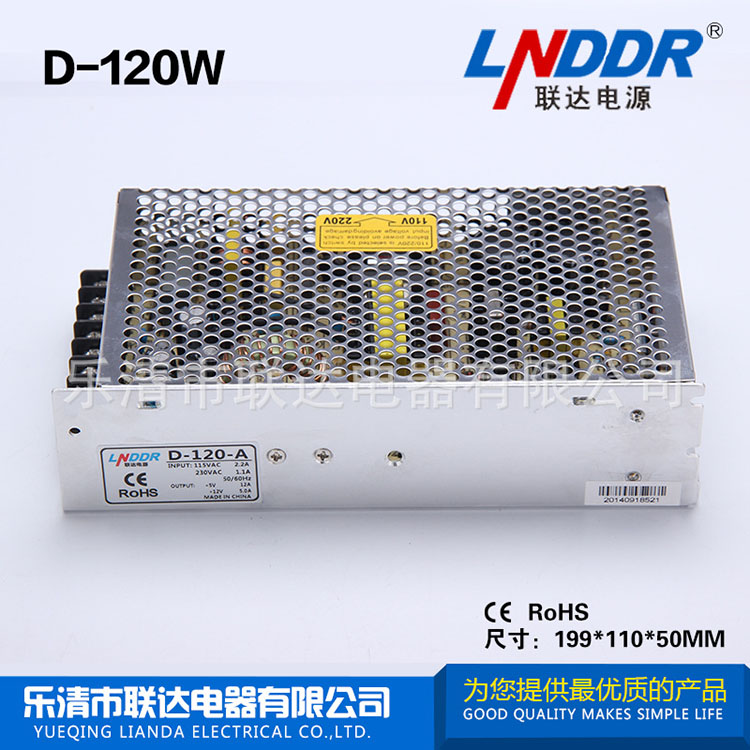

EN生產供應1D-120W雙路輸出開關電源 LED開關電源 開關電源廠家
|
|
|
|
|
|
|
|
|
|
| 型號 | 輸出 | 差值 | 范圍 | 效率 |
| D-120A | 5V,2~12A | ±2% | 60mV | 78% |
| 12V,0.5~5A | ±6% | 120mV | ||
| D-120B | 5V,2~10A | ±2% | 60mV | 80% |
| 24V,0.4~4A | ±7% | 150mV |
| 輸入電壓范圍 | 85~132VAC/170~264VAC 47~63Hz 240~370VDC |
| 輸入電流 | 2A/115V 1A/230V |
| 沖擊電流 | 冷啟動電流35A |
| 漏電電流 | ＜0.5mA/240VAC |
| 直流電壓可調范圍 | 額定輸出電壓的±10% |
| 過載保護 | 105~150%切斷輸出，自動恢復 |
| 過電壓保護 | 115~135% |
| 啟動、上升、保持時間 | 200ms 50ms 20ms |
| 耐壓性 |
I/P-O/P:3KvAC 1minute I/P-FG:1.5KvAC 1minute O/P-FG:0.5KvAC 1minute |
| 工作溫度、濕度 | -10℃~+60℃,20%~90%RH |
| 重量/包裝 | 0.85kg,24pcs/20.4kg |
