EN供應電源 防水電源 S-15W-12V 1.3A 穩壓直流電源 工控電源
| 產品報價單 | |||||||||||||
| 組數 | 型號規格 | AC輸入 | DC輸出 | 輸出保護功能 | 產品尺寸 | 重量 | 裝箱數 | 出廠價 | |||||
| 110V | 220V | 5V | 12V | 24V | 過載 | 過壓 | 過溫 | (mm) | (kg) | (pcs) | (元） | ||
|
常 規 單 組 輸 出 |
SF-10-□ | 0.3A | 0.15A | 2.0A | 0.8A | 0.42A | √ | √ | 74*68*27 | 0.14 | 80 | 25 | |

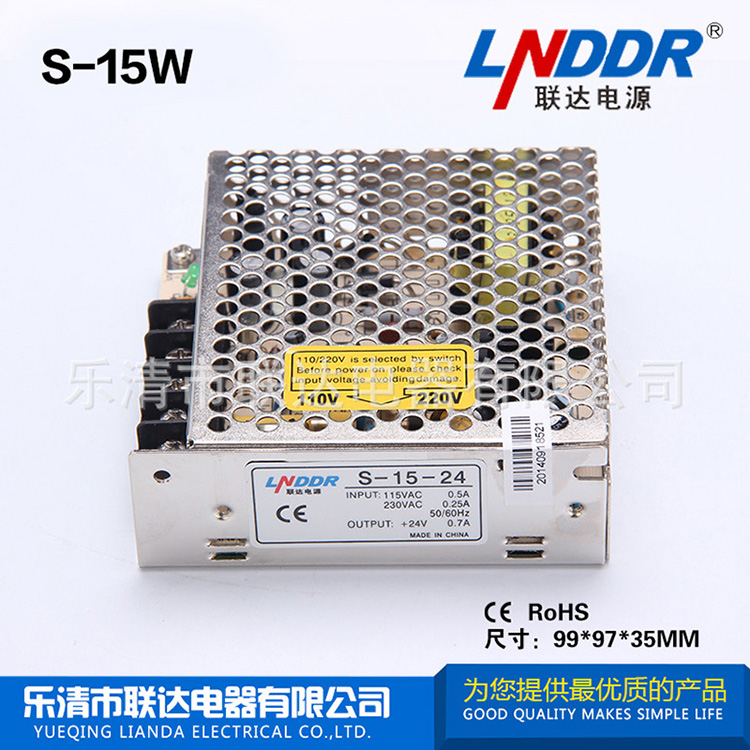

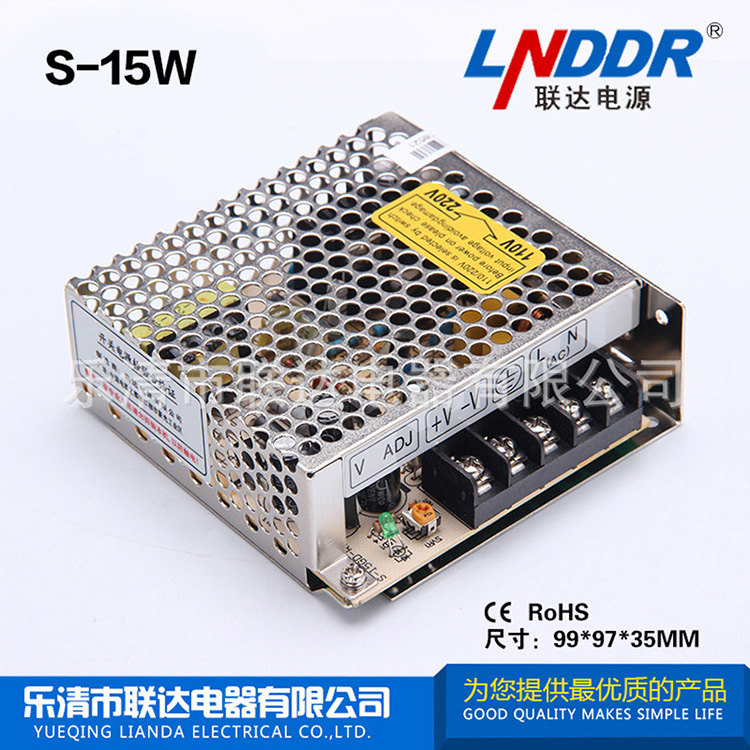

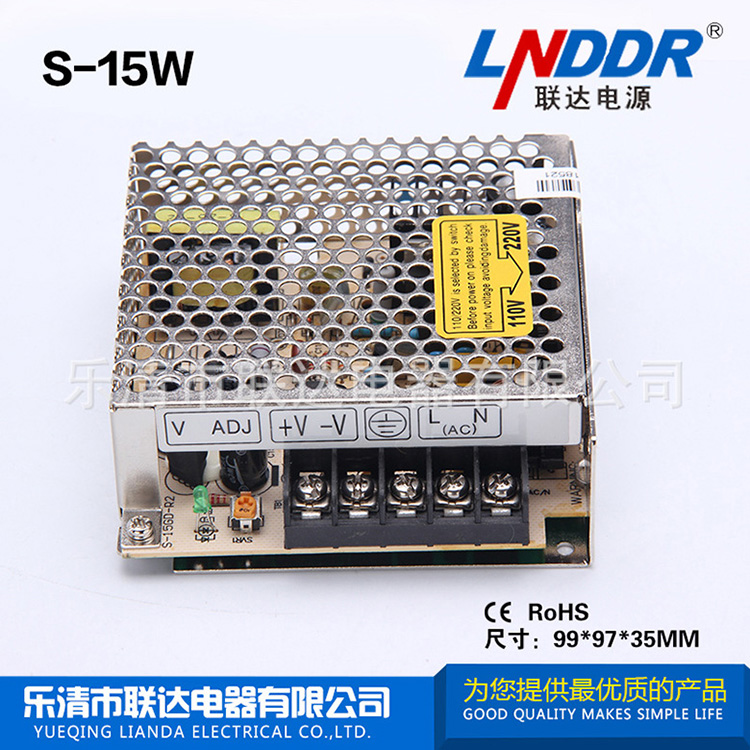

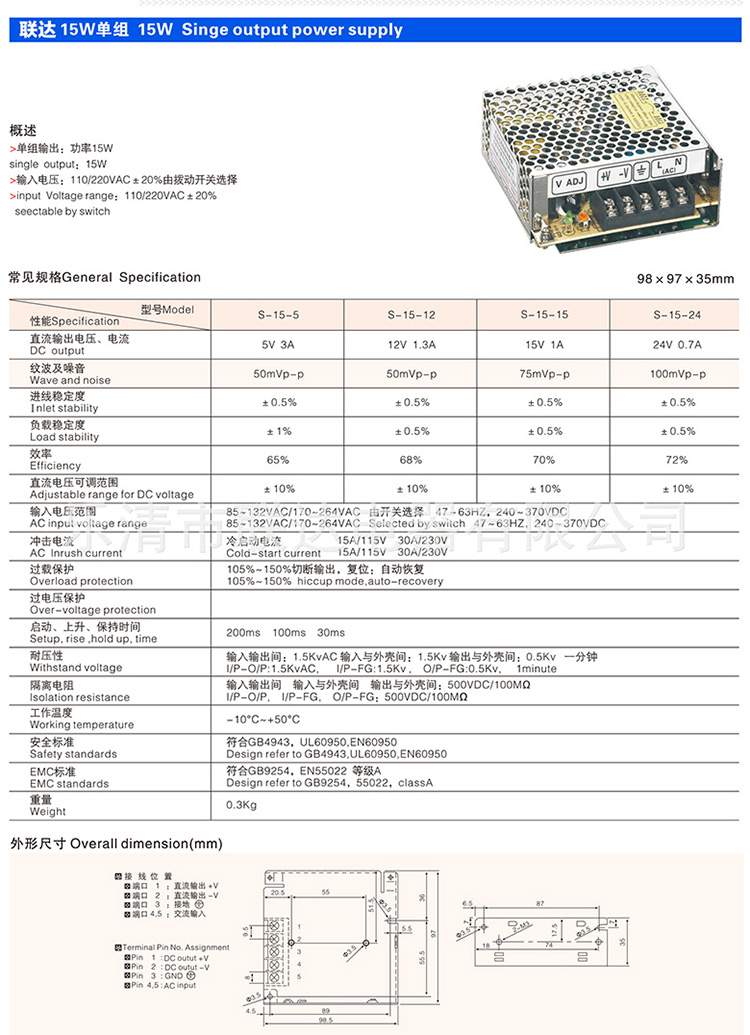

| S-15-□ | 0.5A | 0.25A | 3.0A | 1.3A | 0.7A | √ | 99*97*35 | 0.3 | 60 | 24 | |||
| S-25-□ | 0.6A | 0.35A | 5.0A | 2.1A | 1.1A | √ | 99*97*35 | 0.37 | 60 | 25 | |||
| SF-25-□ | 0.6A | 0.35A | 5.0A | 2.1A | 1.1A | √ | √ | 99*97*35 | 0.37 | 60 | 28 | ||
| S-35-□ | 0.8A | 0.45A | 7.0A | 3.0A | 1.5A | √ | 129*98*38 | 0.4 | 45 | 32 | |||
| S-40-□ | 1.2A | 0.6A | 8.0A | 3.5A | 1.8A | √ | 129*98*38 | 0.45 | 45 | 33 | |||
| SF-40-□ | 1.2A | 0.6A | 8.0A | 3.5A | 1.8A | √ | √ | 129*98*38 | 0.45 | 45 | 45 | ||
| S-50-□ | 1.3A | 0.65A | 10A | 4.2A | 2.1A | √ | 159*98*38 | 0.5 | 30 | 34 | |||
| S-60-□ | 2.0A | 1.0A | 5.0A | 2.5A | √ | 159*98*38 | 0.55 | 30 | 34 | ||||
| SF-60-□ | 2.0A | 1.0A | 12A | 5.0A | 2.5A | √ | √ | 159*98*38 | 0.55 | 30 | 41 | ||
| S-75-□ | 1.6A | 0.8A | 6.3A | 3.2A | √ | 159*98*38 | 0.5 | 30 | 35 | ||||
| SF-75-□ | 1.6A | 0.8A | 15A | 6.3A | 3.2A | √ | √ | 159*98*38 | 0.5 | 30 | 42 | ||
| S-100-□ | 2.4A | 1.2A | 20A | 8.5A | 4.5A | √ | 199*98*38 | 0.65 | 30 | 45 | |||
| S-120-□ | 2.4A | 1.2A | 10A | 5.0A | √ | 199*98*38 | 0.65 | 30 | 45 | ||||
| S-145-□ | 3.2A | 1.6A | 25A | 12A | 6.0A | √ | √ | 199*98*38 | 0.7 | 30 | 50 | ||
| S-150-□ | 3.2A | 1.6A | 30A | 12.5A | 6.5A | √ | √ | 199*110*50 | 0.8 | 30 | 50 | ||
| S-201-□ | 4.5A | 2.5A | 40A | 16.5A | 8.3A | √ | √ | √ | 215*115*50 | 0.9 | 20 | 70 | |
| S-250-□ | 5.0A | 2.5A | 20A | 10A | √ | √ | √ | 215*115*50 | 1.15 | 20 | 80 | ||
| S-320-□ | 6.0A | 3.5A | 25A | 12.5A | √ | √ | √ | 215*115*50 | 1.15 | 20 | 85 | ||
| S-350-□ | 6.5A | 4.0A | 50A | 29A | 14.6A | √ | √ | √ | 215*115*50 | 1.15 | 20 | 85 | |
| S-400-□ | 6.5A | 4.0A | 60A | 33A | 17A | √ | √ | √ | 215*115*50 | 1.2 | 20 | 93 | |
| S-500-□ | 5.0A | 40A | 20A | √ | √ | √ | 238*124*65 | 1.35 | 12 | 175 | |||
| SP-500-□ | 7.0A | 3.5A | 40A | 20A | √ | √ | √ | 415*280*235 | 1.8 | 8 | 260 | ||
| S-600-□ | 6.5A | 50A | 25A | √ | √ | √ | 238*124*65 | 1.8 | 12 | 205 | |||
| S-800-□ | 4.0A | 8.0A | 66A | 33A | √ | √ | √ | 291*132*68 | 2.3 | 6 | 585 | ||
| S-1000-□ | 4.0A | 8.0A | 83A | 42A | √ | √ | √ | 291*132*68 | 2.3 | 6 | 655 | ||
| 質保兩年 | |||||||||||||
